Wireless Transparent Modules

32001372

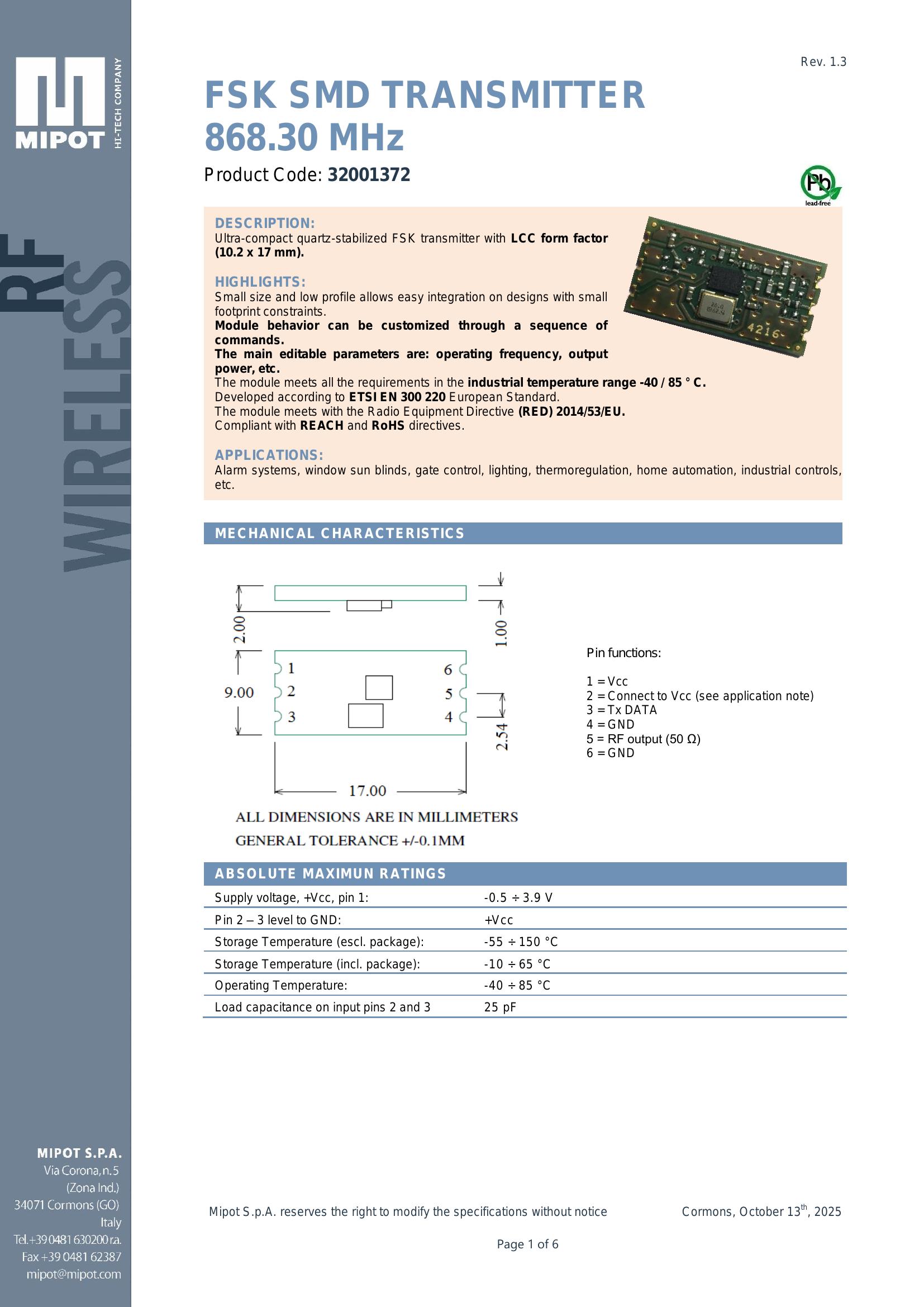

Ultra - compact quartz - stabilized FSK transmitter with LCC form factor (10.2 x 17 mm). Typical applications are alarm systems, window sun blinds, gate control, lighting, thermoregulation, home automation, industrial controls, etc.

Request information

Highlights

Frequency: 868 MHz
Voltage Supply: 3 V
Modulation: FSK
Form Factor: SMD
Dimensions: 9x17x2 mm

Documents

Small size and low profile allows easy integration on designs with small footprint constraints.

Module behavior can be customized through a sequence of commands.

Module can be used in "extended" mode via a sequence of commands sent on pins 2 and 3.

The main parameters are:

- Operating frequency

- Output power

- Modulation (OOK, FSK)

The module meets all the requirements in the industrial temperature range -40 / 85 °C.

Developed according to ETSI EN 300 220 European Standard.

The module meets with the Radio Equipment Directive (RED) 2014/53/EU.

Compliant with REACH and RoHS directives.

Applications

Building Management (Smart Building - Home Automation - Smart Home)

Smart cities aren’t just a concept or a dream of the future. Thanks to the wildly innovative Internet of Things (IoT) solutions, many are already active and expanding rapidly. Municipal governments are leveraging cellular and Low Power Wide Area (LPWAN) wireless technologies to connect and improve infrastructure, efficiency, convenience, and quality of life for residents and visitors alike.

Communities can improve energy distribution, streamline trash collection, decrease traffic congestion, and improve air quality with help from the IoT.

Smart Infrastructure
Air Quality Management
Traffic Management
Smart Parking
Smart Waste Management

The first building block of any smart city application is reliable, pervasive wireless connectivity.

While there’s no one-size-fits-all, evolving Low Power Wide Area Network (LPWAN) technologies are well suited to most smart city applications for their cost efficiency and ubiquity.

Smart Lighting

The concept of Smart Lighting refers to all those Smart lighting systems that are able to operate in a more flexible, customisable and efficient manner than traditional wired and manual systems.

These are a series of technological solutions such as bulbs, switches and other devices that can create usage scenarios according to a specific context, or that can be controlled remotely at any time. This results in a more efficient and scalable lighting system that can be adapted to the needs of the environment in which it is installed, as well as lowering energy consumption and the environmental impact associated with it.

When smart lighting integrates with the IoT, all interconnected devices can be controlled remotely. This means that lights can be switched on, off or programmed to come on even when you are not physically present in the room, but not only that, you can manage their intensity, colour and set more energy-efficient lighting scenarios.

Healthcare Monitoring System

Technological evolution in the health sector leads to quality, results and value.

Patients deserve effectiveness and personalisation of services and for this reason it is important to invest in this direction. Digital healthcare is a trend that involves the use of new technologies, precisely to improve the level of assistance while keeping the costs, where it is possible.

Smart healthcare not only means adopting new products and technologies for diagnosis and treatment, but it includes a greater exchange of information among the parties, a more active role of patients during treatment and, finally, a better management of clinical data.

Healthcare is actually smart because thanks to the devices connected to patients (bracelets, watches and more) it is possible to collect data on the health status of patients to take care of them, even remotely, and prevent critical situations.

Healthcare and IoT applied to medicine enable to use objects integrated by sensors that communicate with each other and exchange information. This exchange of information is necessary to prevent illness and diagnose disease in advance.
