Wireless Transparent Modules

32001151V3

Low cost, ultra-compact SAW-Resonator stabilized OOK transmitter in the 434 MHZ SRD Band. Typical applications are Security Systems, Surveillance Systems, Data Transmission.

Request information

Highlights

Frequency: 434 MHz
Voltage Supply: 3 V
Modulation: ASK
Output Power: 10 dBm
Form Factor: THT
Dimensions: 12.5x26x3 mm

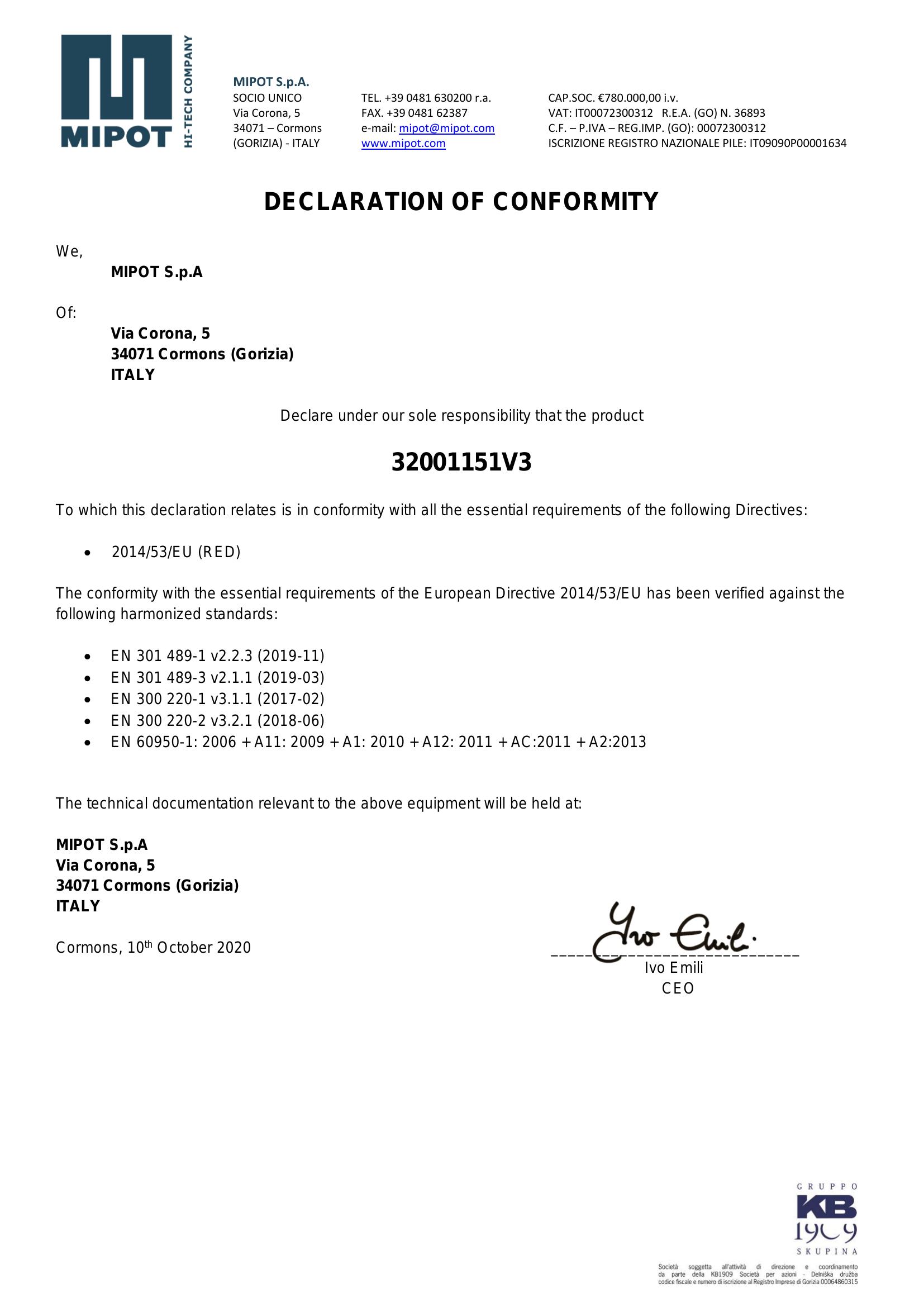

Documents

This module is a simply solution to transmit data at 433.92 MHZ frequency in OOK modulation.

TTL and CMOS levels compatible input.

Very compact and low profile.

A “buffer” stage separates output from oscillator ensuring higher stability and low harmonic emissions.

Applications

Building Management (Smart Building - Home Automation - Smart Home)

Smart cities aren’t just a concept or a dream of the future. Thanks to the wildly innovative Internet of Things (IoT) solutions, many are already active and expanding rapidly. Municipal governments are leveraging cellular and Low Power Wide Area (LPWAN) wireless technologies to connect and improve infrastructure, efficiency, convenience, and quality of life for residents and visitors alike.

Communities can improve energy distribution, streamline trash collection, decrease traffic congestion, and improve air quality with help from the IoT.

Smart Infrastructure
Air Quality Management
Traffic Management
Smart Parking
Smart Waste Management

The first building block of any smart city application is reliable, pervasive wireless connectivity.

While there’s no one-size-fits-all, evolving Low Power Wide Area Network (LPWAN) technologies are well suited to most smart city applications for their cost efficiency and ubiquity.

Smart Lighting

The concept of Smart Lighting refers to all those Smart lighting systems that are able to operate in a more flexible, customisable and efficient manner than traditional wired and manual systems.

These are a series of technological solutions such as bulbs, switches and other devices that can create usage scenarios according to a specific context, or that can be controlled remotely at any time. This results in a more efficient and scalable lighting system that can be adapted to the needs of the environment in which it is installed, as well as lowering energy consumption and the environmental impact associated with it.

When smart lighting integrates with the IoT, all interconnected devices can be controlled remotely. This means that lights can be switched on, off or programmed to come on even when you are not physically present in the room, but not only that, you can manage their intensity, colour and set more energy-efficient lighting scenarios.
