MiP Series


The 32001505FEU is a Multiprotocol Wireless communcation module operating in the 868 MHz Band optimized for long range, low power applications, suitable for LPWA networks. Based on LoRaWAN and LoRa Modem protocols, it provides ultra-long range spread spectrum communication and high interference immunity.

Request information


  • Frequency: 868 MHz
  • Modulation: LoRa
  • Dimensions: 11.3 x 8.9 x 2.5 mm
  • Countries: Europe
  • Protocols: LoRaWAN, LoRa Modem

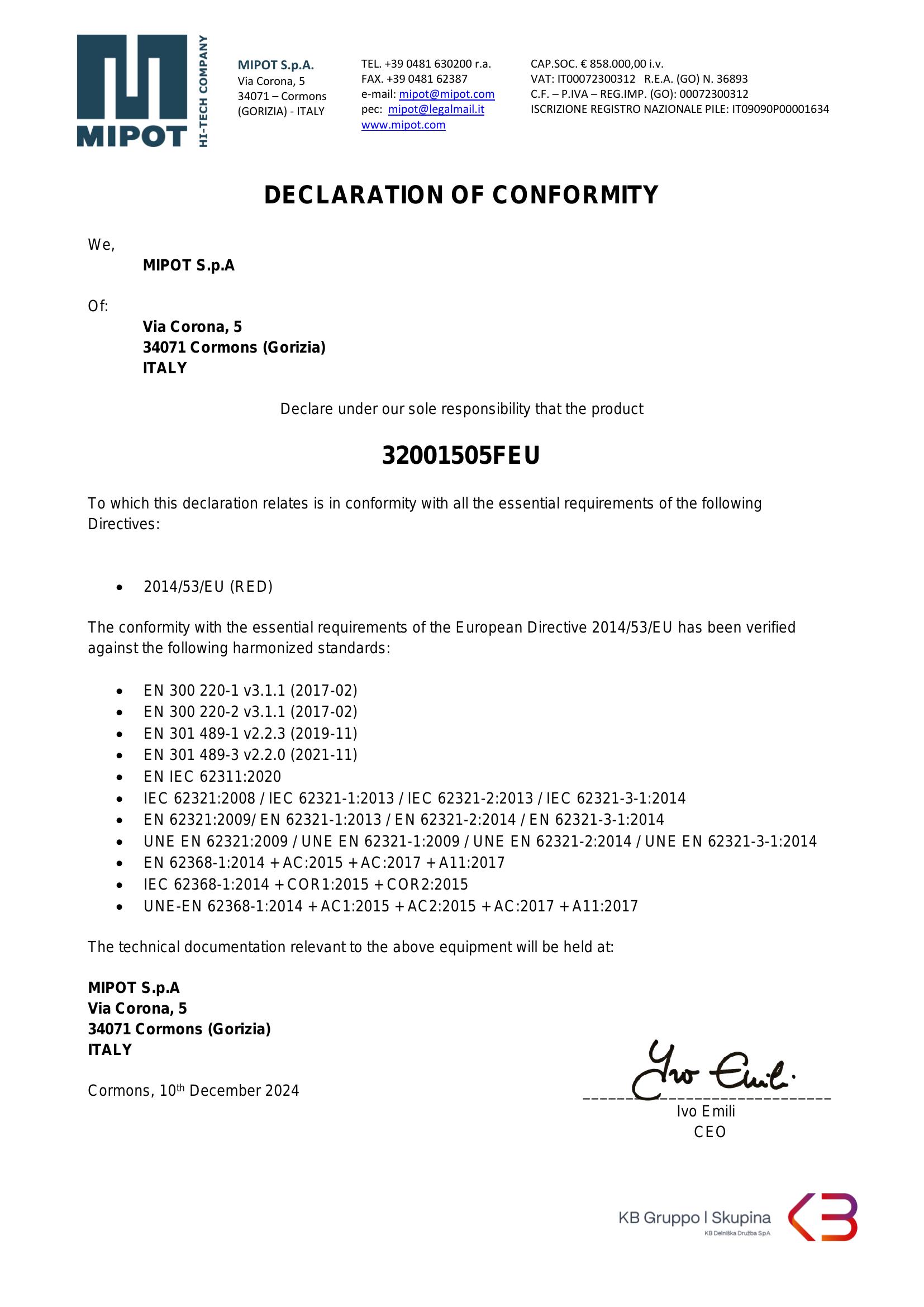

  • Certifications: CE
  • Micro: ARM Cortex M4


Thanks to its small LGA form factor (11.3 mm x 8.9 mm) and its low current consumption, this module allows the implementation of highly integrated low power solutions for Internet of Things (IoT) applications, security systems, sensor networks, metering, smart buildings, agriculture, and supply chain management. The available radio stacks support a wide range of applications using the LoRa modulation, accelerating the development of a LoRaWAN application (32001505BEU) or using the LoRa Modem stack (32001505DEU), it is easy to create point-to-point applications or build a more complex custom stack.

The 32001505FEU contains all the two mentioned stack allowing to switch between them at runtime.

Main highlights:

✓ Extremely compact dimensions (1 cm²)
✓ LGA pattern

RF performances:

✓ -135 dBm sensitivity
✓ +14 dBm Output power

Low power characteristics:
✓ power down current consumption 2.2 μA
✓ 11 mA in RX mode

Protocol and interfaces:

✓ LoRaWAN™ version 1.0.4

✓ LoRa Modem
✓ Smart peripheral interfaces selector (UART, LPUART, SPI, I²C)
