MiP Series
32001506CEU
The 32001506CEU is a Wireless LoRa protocol base communcation module operating in the 868 MHz Band optimized for long range, low power applications, suitable for LPWA networks. Based on LoRa Mipot protocol, it provides ultra-long range spread spectrum communication and high interference immunity.
Highlights
- Frequency: 868 MHz
- Modulation: LoRa
- Dimensions: 11.3 x 9.80 x 2.5 mm
- Countries: Europe
- Protocols: LoRa Mipot
- Certifications: CE
- Micro: ARM Cortex M4 and ARM Cortex M0+
Overview
Thanks to its small LGA form factor (11.3 x 8.9 mm) and its low current consumption, this module allows the implementation of highly integrated low power (battery operated) solutions for Internet of Things (IoT) applications like: smart cities, smart metering, building Automation, smart agriculture, fleet tracking, waste management, Renewable Energy Systems.
Main highlights:
✓ Extremely compact dimensions (1 cm²)
✓ LGA pattern
RF performances:
✓ -135 dBm sensitivity
✓ +14 dBm Output power
Low power characteristics:
✓ Power down current consumption 2.2 μA
✓ 11 mA in RX mode
Protocol and interfaces:
✓ LoRa Mipot
✓ Smart peripheral interfaces selector (UART, LPUART, SPI, I²C)
PDF
3200150X Datasheet
PDF
3200150xCxx Command Reference
PDF
Dual Core Programming Guide
PDF
Manufacturing Process - Application Note
PDF
User Guide - How to set up the 3000150xCxx to work with the demo GUI
PDF
MiP Series - Dual Core Module Communication Interface - Application Note
PDF
User Guide - Firmware Update for Wireless Protocol Modules
PDF

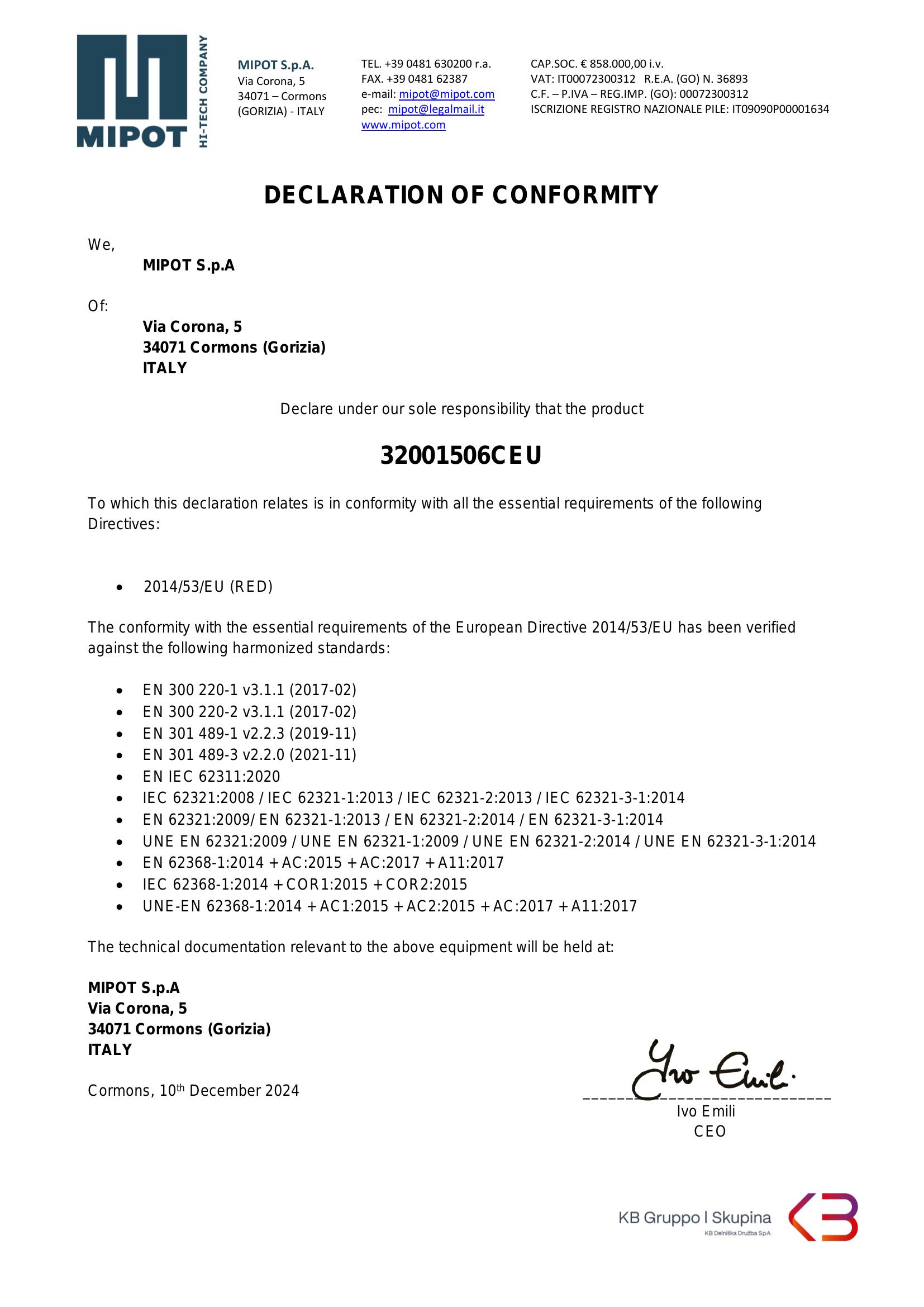

DoC 32001506CEU
INTLIB
Altium Library for MiP Series
EXE
GUI LoRaMiP-2.1.24-net10.0-x86
EXE
GUI LoRaMiP-2.1.24-net10.0-x64
