Mipot Launches New wM-Bus Module for Next-Gen Smart Metering

Cormons (GO), Italy – Mipot is proud to announce the 32001605BE8SW, the latest addition to the MiP Series of wireless protocol modules. This host-based Wireless M-Bus transceiver is designed as a "no compromise" solution for the demanding requirements of modern smart metering.

Key Technical Highlights:

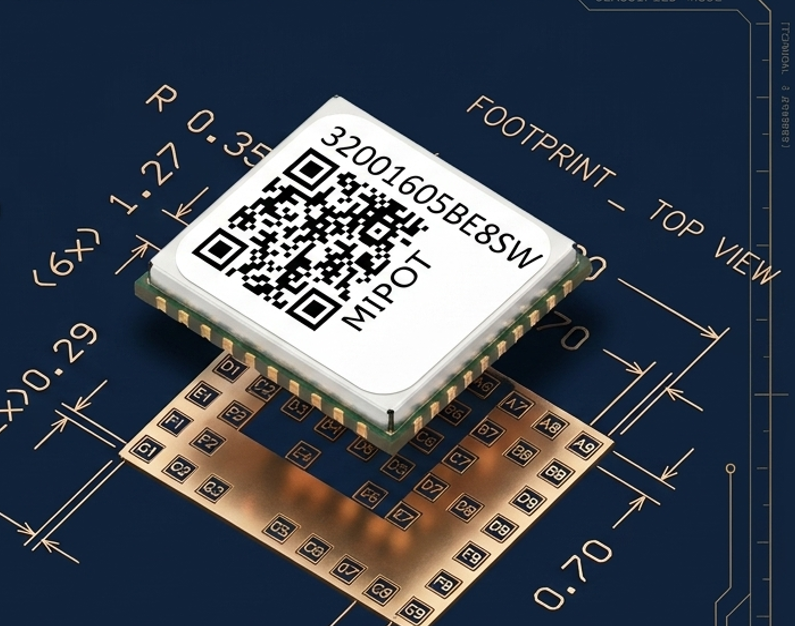

Ultra-Compact Design: Extremely small LGA form factor (11.3 mm x 8.9 mm) for seamless PCB integration.

Superior RF Performance: Offers up to -115 dBm sensitivity (Mode R) and +14 dBm output power.

Extreme Power Efficiency: Engineered for multi-year battery life with 14 nA shutdown and 1.5 µA sleep current consumption.

Full Protocol Support: Operates in the 868 MHz band, supporting EN13757-4 modes S, T, R, and C for one-way or two-way communication.

Flexible Integration: Features a smart interface selector supporting UART, LPUART, and I2C.

For technical specifications or to request an evaluation kit, please visit www.mipot.com or contact sales@mipot.com.
