Wireless Transparent Modules

32001520V3

Low cost, high performance Superheterodyne OOK/ASK receiver with low profile and height in the 434 MHz SRD band. Typical applications are remote control system, security systems, data transmission, industrial controls, home automation.

Request information

Highlights

Frequency: 434 MHz
Voltage Supply: 3 V
Modulation: ASK
Sensitivity: -110 dBm
Form Factor: THT
Dimensions: 13.5x34.5x3 mm

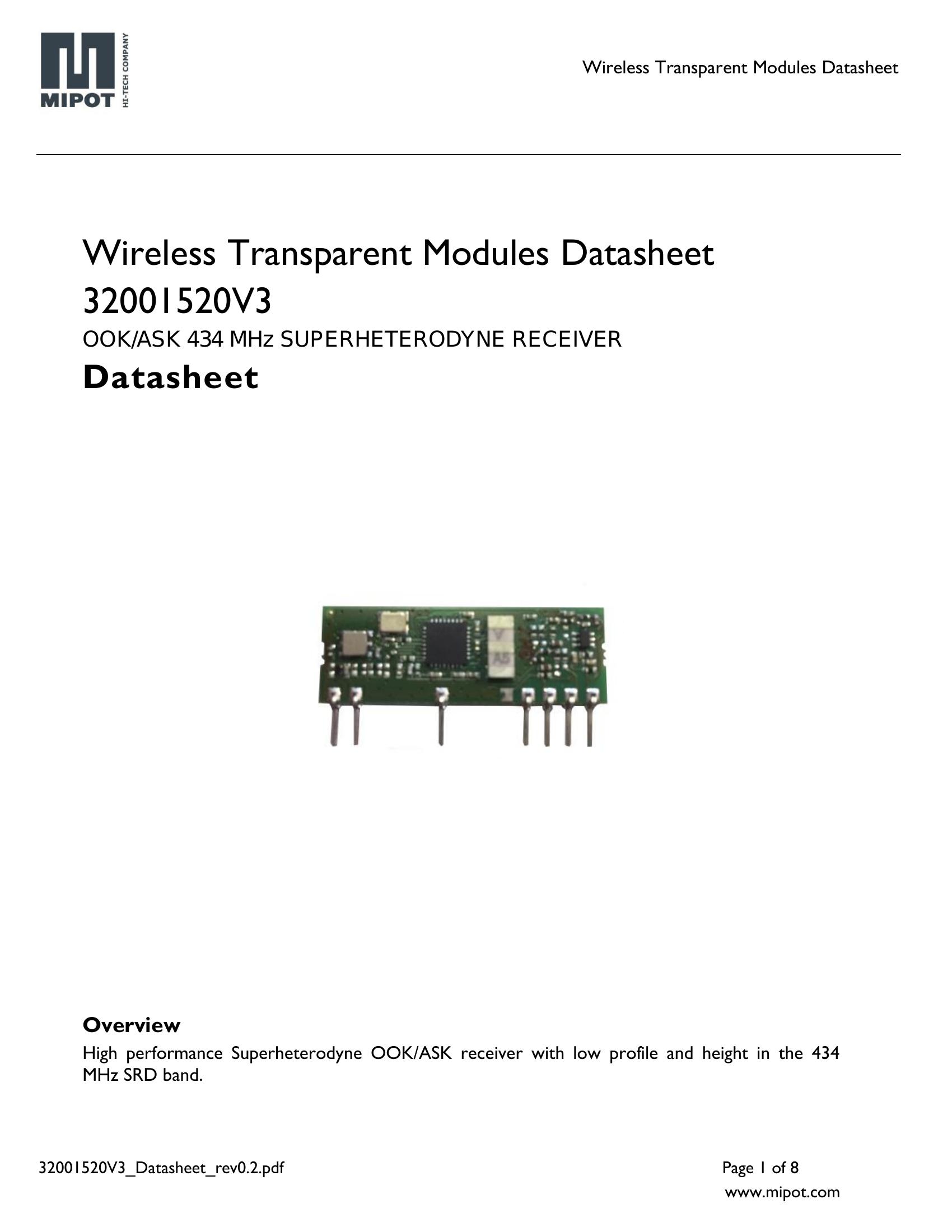

Documents

This module is equipped with a differential image rejection mixer for a good out of band interference immunity.

Thanks to an efficient embedded noise cancellation filter, this receiver reaches a good noise reduction and restoration of the integrity of the received signal, providing excellent performances.

Suitable for all HCS, HT12 encodings and similar.

RSSI output is proportional to the received signal level.

Supply voltage range from 4.5 to 5.5 V.

Industrial temperature range -40/85 °C.

CATEGORY 1.5 RECEIVER developed according to ETSI EN 300 220 European Standard.

The module meets with the Radio Equipment Directive (RED) 2014/53/EU.

Applications

Building Management (Smart Building - Home Automation - Smart Home)

Smart cities aren’t just a concept or a dream of the future. Thanks to the wildly innovative Internet of Things (IoT) solutions, many are already active and expanding rapidly. Municipal governments are leveraging cellular and Low Power Wide Area (LPWAN) wireless technologies to connect and improve infrastructure, efficiency, convenience, and quality of life for residents and visitors alike.

Communities can improve energy distribution, streamline trash collection, decrease traffic congestion, and improve air quality with help from the IoT.

Smart Infrastructure
Air Quality Management
Traffic Management
Smart Parking
Smart Waste Management

The first building block of any smart city application is reliable, pervasive wireless connectivity.

While there’s no one-size-fits-all, evolving Low Power Wide Area Network (LPWAN) technologies are well suited to most smart city applications for their cost efficiency and ubiquity.

Smart Lighting

The concept of Smart Lighting refers to all those Smart lighting systems that are able to operate in a more flexible, customisable and efficient manner than traditional wired and manual systems.

These are a series of technological solutions such as bulbs, switches and other devices that can create usage scenarios according to a specific context, or that can be controlled remotely at any time. This results in a more efficient and scalable lighting system that can be adapted to the needs of the environment in which it is installed, as well as lowering energy consumption and the environmental impact associated with it.

When smart lighting integrates with the IoT, all interconnected devices can be controlled remotely. This means that lights can be switched on, off or programmed to come on even when you are not physically present in the room, but not only that, you can manage their intensity, colour and set more energy-efficient lighting scenarios.
