MiP Series
32001506BEU
The 32001505BEU is a Wireless LoRaWAN protocol base communcation module operating in the 868 MHz Band optimized for long range, low power applications, suitable for LPWA networks. Based on LoRaWAN™ protocol, it provides ultra-long range spread spectrum communication and high interference immunity.
Highlights
- Frequency: 868 MHz
- Dimensions: 11.3 x 8.9 x 2.5 mm
- Countries: Europe
- Protocols: LoRaWAN
- Certifications: LoRa Alliance, CE
- Micro: ARM Cortex M4 and ARM Cortex M0+
OVERIEW
Thanks to its small LGA form factor (11.3 x 8.9 mm) and its low current consumption, this module allows the implementation of highly integrated low power (battery operated) solutions for Internet of Things (IoT) applications.
Mechanical highlights:
✓ Extremely compact dimensions (1 cm²)
✓ LGA pattern
RF performances:
✓ -135 dBm sensitivity
✓ +14 dBm Output power
Low power characteristics:
✓ power down current consumption 2.2 μA
✓ 11 mA in RX mode
Protocol and interfaces:
✓ LoRaWAN™ version 1.0.4
✓ Smart peripheral interfaces
(UART, LPUART, SPI, I²C)
PDF
3200150X Datasheet
PDF
3200150xBxx Command Reference
PDF
Dual Core Programming Guide
PDF
Manufacturing Process - Application Note
PDF
User Guide - How to Join with "The Things Network"
PDF

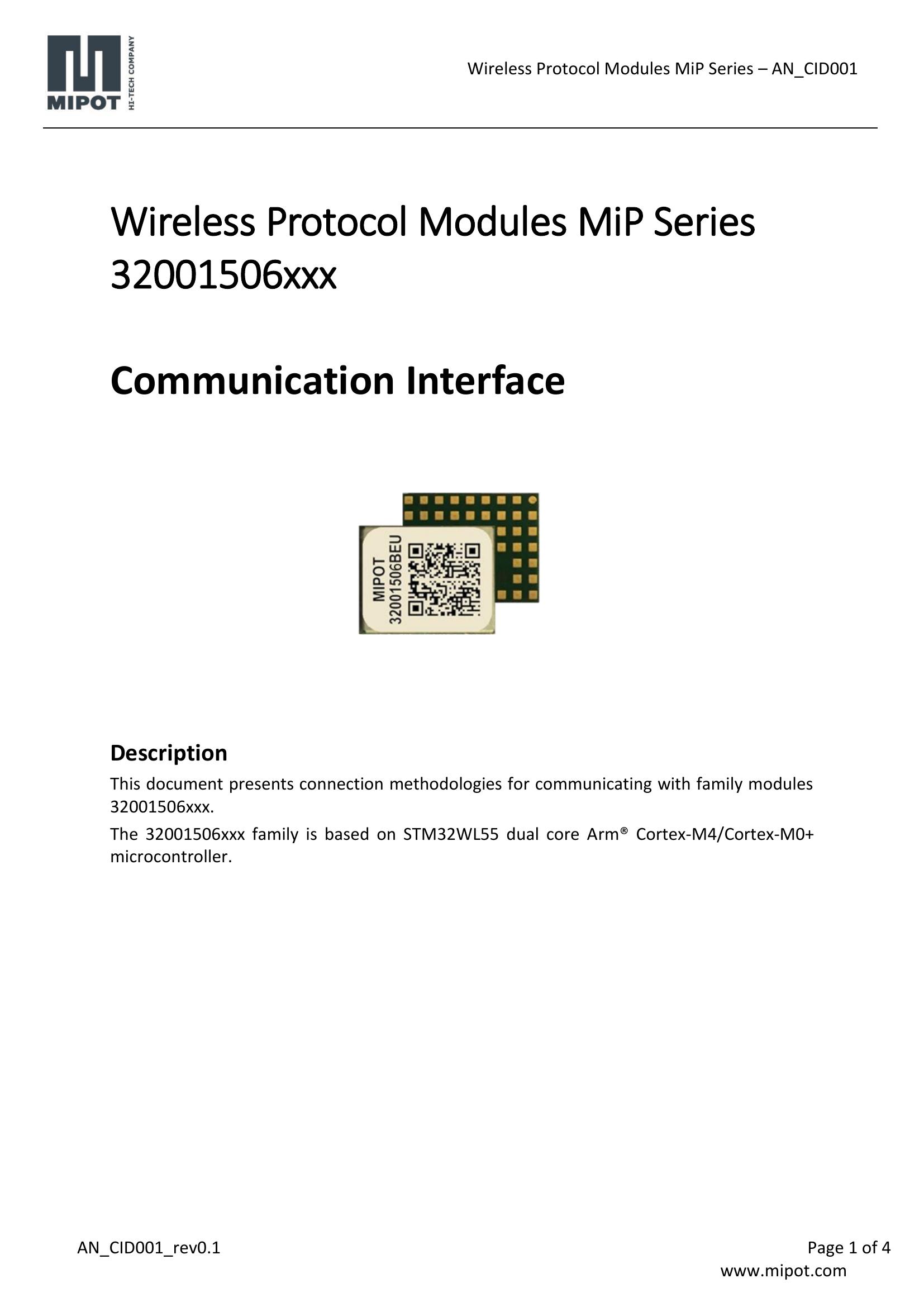

MiP Series - Dual Core Module Communication Interface - Application Note
PDF
User Guide - Firmware Update for Wireless Protocol Modules
PDF

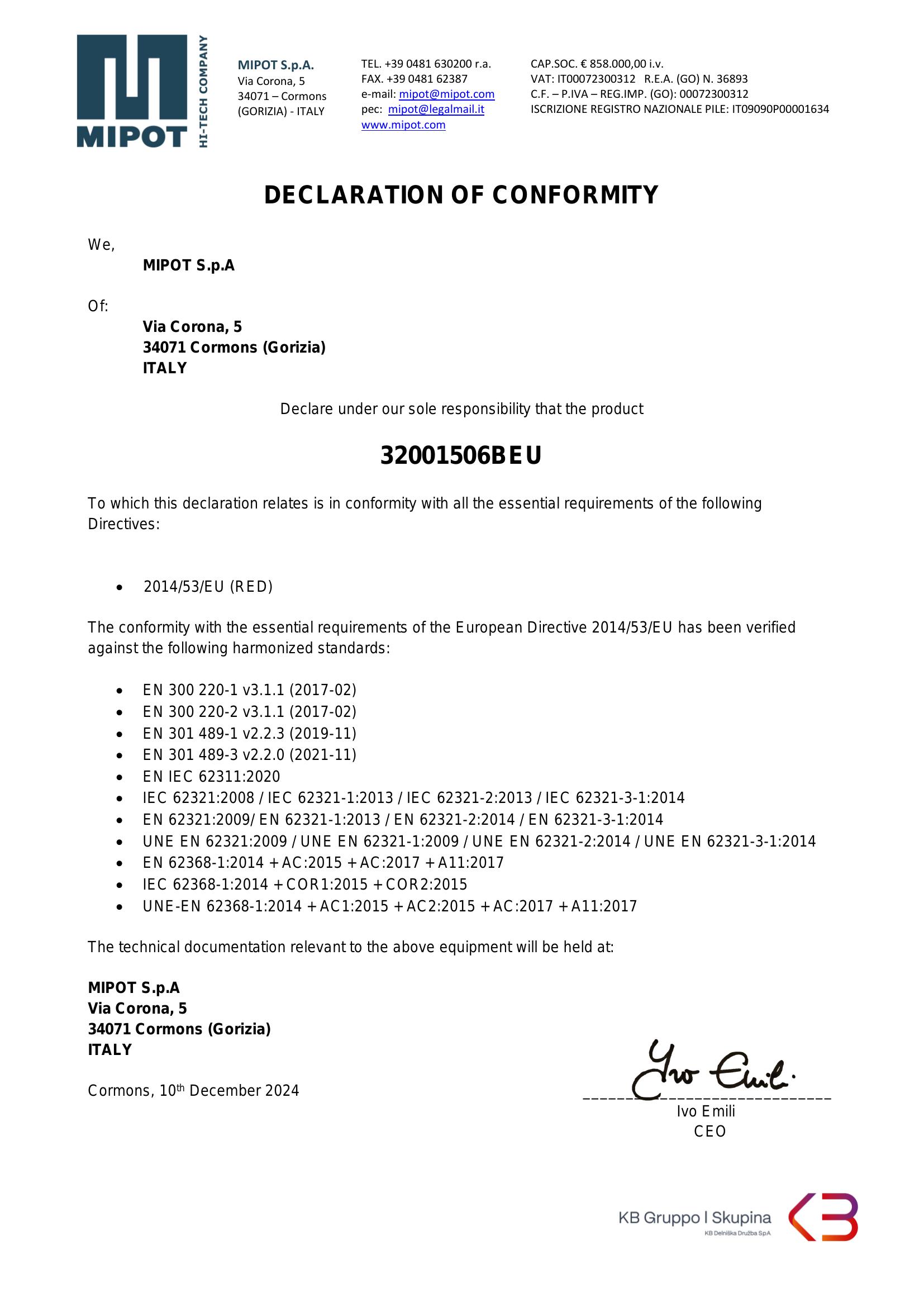

DoC 32001506BEU
INTLIB
Altium Library for MiP Series
EXE
GUI LoRaMiP-2.1.24-net10.0-x86
EXE
GUI LoRaMiP-2.1.24-net10.0-x64
